Automatic Steel Bending Machine for Angle Iron C Chanel Rolling
Description
1). It's ideal equipment of curved process for furniture manufactures,wrought iron engineering manufacturers, aluminum alloy doors and windows manufaturers, aluminum alloy doors and windows manufacturers, decorative steel structure enterprise.
2). It can bend all kinds of Aluminum profiles (normal profiles, thermal break aluminum, alu-plastic-alu profile, alu-plastic profile), all profiles can be bent to designed shapes at one time which is of high efficiency and without wear; Or it can be bent multi-times if needed.
3). This machine adopts imported computer control,make the operation more simple and convenient. (It has a special bend arc software).
4). This equipment adopts servo motor,special bending roller, ball screw, it is high precise bending,high Reliability, the bending processing adopts using pedal switch to control, it is easy to operate.This equipment includes: machine body,horizontal feeding part, vertical feeding part, supporting profile frame, CNC system.
5). The ability to detect material of rebound data,eliminate rebound. Able to bend C shape,ellipse, circle,such as spring shape. Because of the use of numerical control hydraulic system, positioning accuracy≤0.01mm.
Parameter
| Model | BM200-CNC |
| Power supply | 380V 50Hz |
| Input power | 5.8Kw |
| Hydraulic stress | 20T |
| Positioning accuracy | 0.01mm |
| Three shaft speed | 1-14r/min |
| Axial spacing | 350-650mm |
| Min. bend radius | R=80mm |
| Spindle diameter | 60mm |
| Machine size | L*W*H=1700*1100*1300mm |
| Weight | 750Kg |

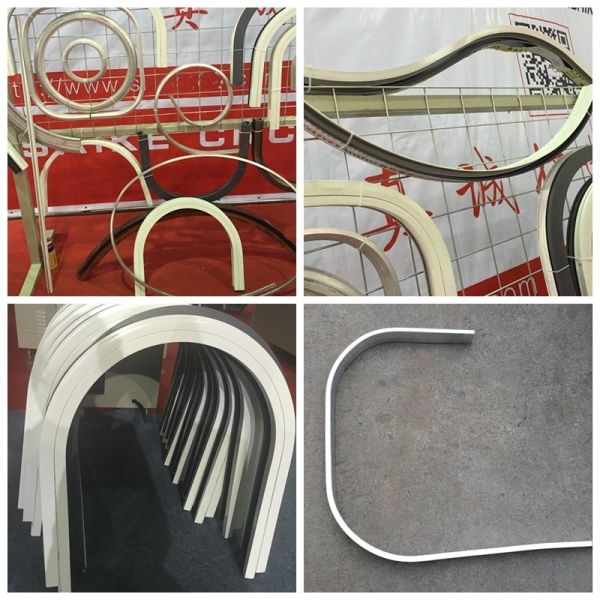

Application
