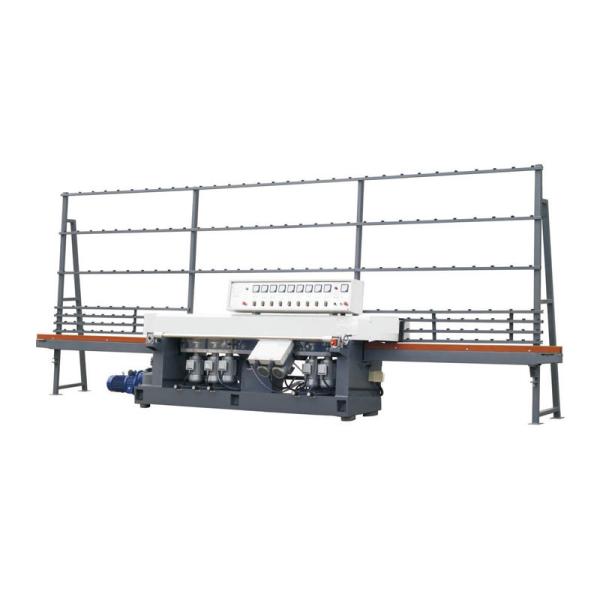

45 Degree Linear Glass Edging Machine With 9 Set Abrasive Diamond Wheel

Model Number : CAEP04

Certification : CE ISO

MOQ : 1set

Price : By negotiation

Supply Ability : 60 sets per month

Delivery Time : 15 days

Packaging Details : 1, plastic stretch film coating; 2, steel pallet and plywood case package; 3, LCL or FCL by sea transportation;

Function : 45 Degree Glass Edge Grinding

Max edging size : 3000x3000mm

Min edging size : 80x80mm

Glass thickness : 3-25mm

Grinding tool : Diamond wheel

Grinding speed : 7m/min

Producut : 45 Degree Glass Edge Grinding Machine with 9 Set Abresive Wheel for Big Glass Edging

Grinding down : 1.5mm

Contact Now

45 Degree Glass Edge Grinding Machine with 9 Set Abresive Wheel for Big Glass Edging

Product Description

The linear glass edge polishing machine is equipped with different grinding wheels,aimed at grinding of linear round edge and linear duckbilled edge of flat glass.The 9 motors machine is mainly used for grinding bottom edges and large edges of flat glass, its grinding motor are very reasonably distributed, 5 pcs of which are used for grinding bottom edges, 4pcs for grinding 45-degree sharp edges, it can be used for precisely grinding flat bottom edges and 45-degree sharp edges of glass. The machine has highly practical, simply operation, it is suitable for professional furniture, doors, windows, kitchen, craft, construction glass grinding.

Paramenters

Overal dimension	7000x1020x2350mm
Working table height	750mm
Voltage	380V/50Hz
Power	19.45KW
Weight	3000kg
Wheel number	nine
Grinding down height	1.5mm
Parallel tolerance	±0.2mm/m
Diagonal tolerance	±0.3mm/m
Speed	0.5-7.0m/min
Max glass size	3000x3000mm
Min glass size	80x80mm
Min glass thickness	3mm
Max glass thickness	25mm
Edging angle	45°

45 Degree Linear Glass Edging Machine With 9 Set Abrasive Diamond Wheel

Function

1. Suitable for grinding straight edge of different size and thickness flat glass.

2. The coarse grinding, fine grinding, chamfering and polishing can be finished at one time.

3. Working speed and working load can be adjusted smoothly by continuously variable mechanism transmission.

4. Adjust front rail to match different glass thickness.

5. The machine is equipped with automatic clamping system and voltage stabilizing system.

6. It is a necessary tool with high precision, high efficiency and easy operation in glass processing industry.

Product flow

45 Degree Linear Glass Edging Machine With 9 Set Abrasive Diamond Wheel

Product Application

45 Degree Linear Glass Edging Machine With 9 Set Abrasive Diamond Wheel

Our Services

45 Degree Linear Glass Edging Machine With 9 Set Abrasive Diamond Wheel

Packaging & Shipping

45 Degree Linear Glass Edging Machine With 9 Set Abrasive Diamond Wheel
