Window Glass Processing Equipment Vacuum Silicone Suction Cup Sucker Lifter

Model Number : SD400-03

Certification : CE ISO

MOQ : 1set

Price : By negotiation

Supply Ability : 60 sets per month

Delivery Time : 5 days

Packaging Details : 1, plastic stretch film coating; 2, steel pallet and plywood case package; 3, LCL or FCL by sea transportation;

Function : Material Handling Equipment

Max Lifting Height : 1000mm

Max lifting weight : 600kg

Sucker number : 6pcs

Vacuum pressure : >0.5bar

Turning angle : 0-90degree

Rotating angle : 360 degree

Safety Guarantee System : 20min working without pressure

Product : Vacuum Sheet Lifter Material Handling Equipment

Drive by : vacuum pump

Contact Now

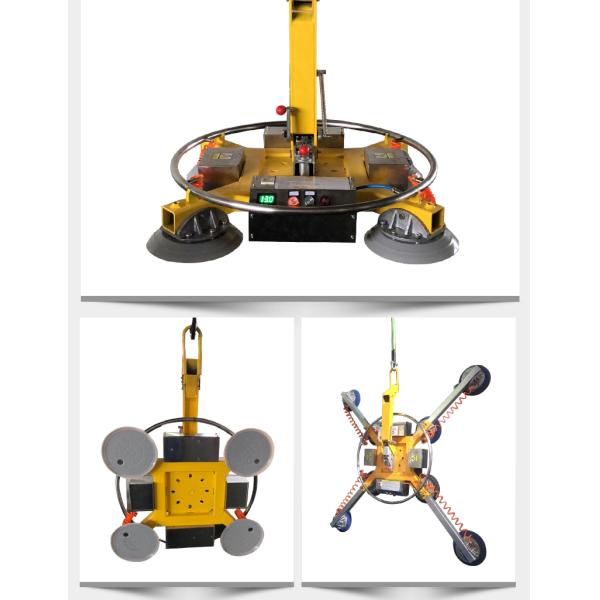

Window Glass Vacuum Silicone Suction Cup Sucker Lifter

Window Glass Processing Equipment Vacuum Silicone Suction Cup Sucker Lifter

Product Description

Adjustable manual vacuum lifter is a glass handling equipment with flexible structure and simple operation. It is able to assemble in various ways in accordance with demand. By changing position of suckers can realize absorbing glass with different shapes and dimensions. All functions can be done by hand, dispensed with electricity, safe and reliable. It is one of the most comonly used equipments for curtain wall installation and glass deep processing enterprises. Window Glass Processing Equipment Vacuum Silicone Suction Cup Sucker Lifter

Paramenters

Parameters of Care glass vacuum lifter
Model	SD400-03	SD600-03	SD800-03
Rated load	400kg	600kg	800kg
Sucker diameter	250mm	250mm	250mm
Sucker qty	4	6	8
Vertical rotation	0°-90°	0°-90°	0°-90°
Horizontal rotation	360°	360°	360°
Charger	AC 220V	AC 220V	AC 220V
Power	12V battery	12V battery	12V battery
Weight	80kg	100kg	120kg

Note: various lifting capacity and power supply available.

Products Features

Window Glass Processing Equipment Vacuum Silicone Suction Cup Sucker Lifter

Product Application

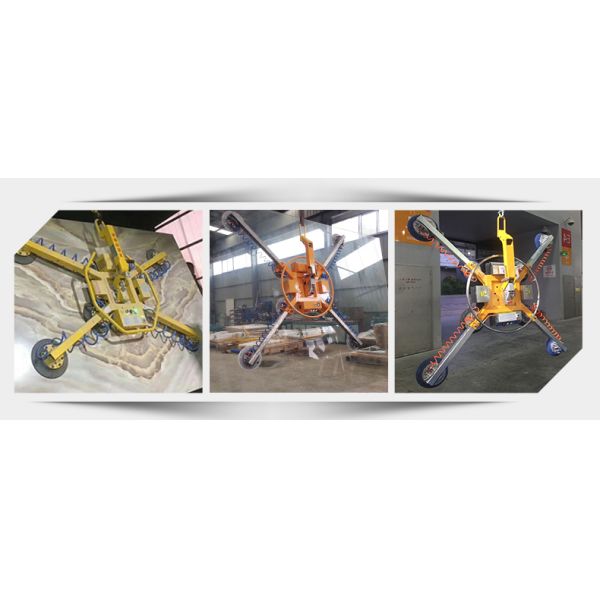

The lifter is widely used for lifting, handling and moving of glass, steel and wood sheet and marble. Window Glass Processing Equipment Vacuum Silicone Suction Cup Sucker Lifter

Packaging & Shipping

Window Glass Processing Equipment Vacuum Silicone Suction Cup Sucker Lifter
