PVC & Upvc Window Frame Cutting Machine Double Axis Water Slot Milling Machine

Product Categories

Beijing Silk Road Enterprise Management Services Co.,LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Model Number : SCX02-60

Certification : CE ISO

MOQ : 1set

Price : By negotiation

Supply Ability : 30 sets per month

Delivery Time : 20 days

Packaging Details : 1, plastic stretch film coating; 2, steel pallet and plywood case package; 3, LCL or FCL by sea transportation;

Function : Double Axis Water Slot Milling

Air pressure : 0.5-0.8MPa

Rotating rate : 25000r/min

Milling size : 0-60mm

Total power : 0.76Kw

Product : UPVC Window Machine Double Axis Water Slot Milling Machine

Contact Now

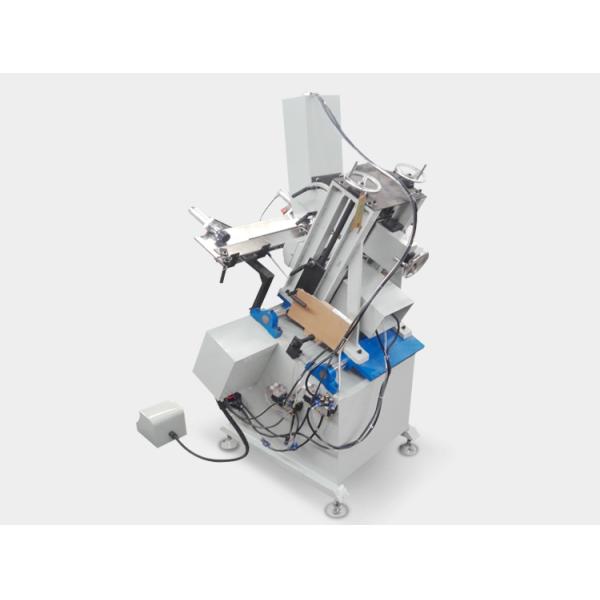

SCX02-60 Double Axis Water Slot Milling Machine For PVC & UPVC Window And Door Farme

Product description

This machine mainly consists of machine heads, hand driven lift mechanism, profile-holding worktable, machine framework, and electric chest. The whole machine is normally equipped with two machine heads: right machine head, middle machine head.

According to different requirements, we can select different allocations such as allocation of left machine head, allocation of middle machine head, low head machine and so on. All the working combination of every machine heads can be completed through the select switch on the electric chest.
This machine uses module structure. During running, all the machine heads can single work, or selected interlock work, which is free to select, easy to control. It is mainly used for processing water slot on PVC profile.
We can make the single axis, Two axis,three axis,four axis according to your needs.

Main Features

PVC & Upvc Window Frame Cutting Machine Double Axis Water Slot Milling Machine

1.Adjustable milling length and speed.

2..The upper and horizontal directions can be processed with one time clamping.

3.Used for milling all kind sof water slots and air pressure balance grooves.

4.Special feeding system, need no special maintenance, high milling quality.

5.Milling heads can work together to meet various processing requirement.

6.Adopt linear bearing motion to ensure the processing precision

Product detail

PVC & Upvc Window Frame Cutting Machine Double Axis Water Slot Milling Machine
